Smart locks for sliding glass doors: what actually fits

A patio door looks like it should be the easy one. It is already a wide panel with a handle on it, and the doorway gets used every day. Then you go shopping and nothing fits. There is no 2-1/8 inch cross bore, no deadbolt, no thumbturn to clamp a retrofit onto, and the aluminum or vinyl stile that carries the handle is often under two inches wide. The whole smart deadbolt aisle is out before you have compared a single feature list.

What replaces it is a much smaller set of hardware, plus a decision most households end up making anyway: whether the patio door needs to be smart at all, or whether it just needs to be harder to open.

What is holding your sliding door shut right now

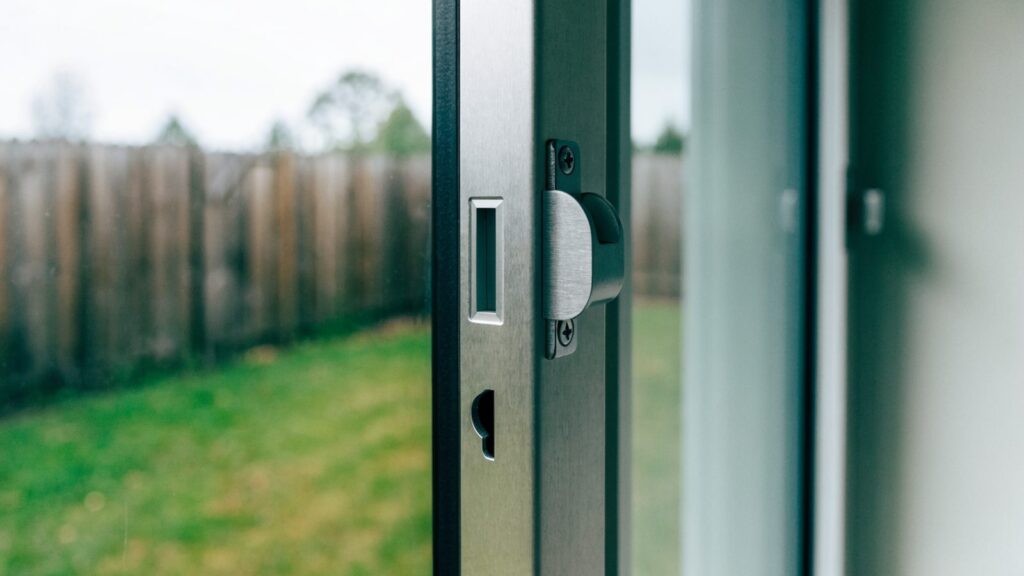

Almost every North American sliding patio door works the same way. A mortise lock body sits inside the edge of the moving panel, in the vertical member called the lock stile. Turning the interior lever or thumb latch swings one or two hooks out through a slot in that edge, and the hooks catch a keeper screwed to the fixed frame. Vinyl and fiberglass doors from roughly the last twenty years often use two hooks, one high and one low, driven by a single handle. Older aluminum doors may have nothing more than a spring latch dropping behind a bent metal tab.

The important part is what the hook is doing. It pulls the panel toward the frame and resists it sliding sideways. It is not a bolt crossing a gap into a strike box screwed to a stud, which is what a deadbolt does on a hinged door. Every product decision below follows from that difference.

Why smart deadbolts cannot follow you here

A standard smart deadbolt expects a 2-1/8 inch hole through the face of the door, a 1 inch hole in the edge, a backset of 2-3/8 or 2-3/4 inches, and a door somewhere between 1-3/8 and 1-3/4 inches thick. A sliding panel has none of that to give. The stile is a hollow extrusion a couple of inches wide, holding the edge of a sealed glass unit a short distance away. Cutting a 2-1/8 inch hole through it would take out the structural section and very likely the glazing pocket with it.

Retrofit models fail on a different point. The August and SwitchBot approach clamps over the interior thumbturn of an existing deadbolt and turns it with a motor. A sliding door has no round thumbturn, no cylindrical collar to grip, and often no flat surface wide enough for the mounting plate. For the wider view of which mechanism belongs on which door, the guide to keyless entry lock types sorts the categories by the door they were designed for.

The four mechanisms that do fit

Everything sold for a patio door falls into one of four groups. Two of them replace hardware, one adds hardware, and one motorizes what is already there.

A handle set built for sliding doors

This is the closest thing to a drop-in answer. The old handle set comes off and a replacement goes on, electronics in the interior escutcheon, keypad or Bluetooth radio on the outside plate. It drives the same kind of hook bolt, so nothing about the door changes except the part you touch.

The catch is availability. The names people know for full lock replacement, Schlage and Yale and Kwikset, build for bored hinged doors, and their catalogs mostly stop at the patio. Sliding-door versions come from door and window hardware suppliers rather than the lock aisle, the selection is thin, and fit is settled by screw spacing and mortise body dimensions long before finish or app support enters the picture.

Replacing the hook bolt itself

Many doors will take a different mortise body inside the stile while keeping the existing handle set. The old body slides out through the cutout in the panel edge once the handle screws and the face plate screws are out. This is how a locksmith usually rekeys or upgrades a patio door, and it is how a two-point hook system gets repaired when one hook stops throwing.

Worth knowing the option exists, because a fair number of patio doors owners describe as impossible to lock are simply worn mortise bodies with a keeper out of line. It is rarely a route to a smart lock, though. Electrified bodies in this size are commercial hardware.

Surface-mounted bolts, pins and track bars

These sit on the interior face and do not care what the lock stile is made of. A pin lock puts a small hole through the interior frame into the fixed frame and drops a pin through both. A foot bolt at the bottom of the panel drops into the track. A bar or a cut broom handle in the lower track stops the panel moving at all.

Almost none of this is smart, and that is the honest verdict on the group. It is also cheap, reversible and effective, which makes it the sensible answer in a rental. The same reasoning applies to a hallway door, and the piece on adding an extra lock to an apartment door without drilling covers the versions that leave no marks behind.

Motorized add-ons that work the existing handle

An actuator mounts near the handle and pushes or pulls the lever the way a finger would. SwitchBot is the best known example of this general design approach, though its lock products are built around deadbolt thumbturns rather than patio levers, so a sliding-door installation usually means a small bot pressing a lever on a mount you have improvised.

Owners commonly report two recurring problems: adhesive giving up on warm vinyl in a sunny room, and alignment drifting until the lever no longer travels far enough to throw the hook. Battery life also tends to fall short of the published figure, since every cycle fights a stiff mortise body rather than a well-oiled thumbturn. Go in expecting to fuss with it.

Measure before you buy anything

Fit on a sliding door is decided by five or six numbers, none of which appear on the box of a smart deadbolt. Take them before you shop, and treat any product page that does not list them as written by somebody who has not thought about your door.

1. Screw spacing on the interior handle, measured center to center between the two through-bolts. Two spacings turn up more than any others, 3-15/16 inches and 5-7/8 inches, with enough exceptions that measuring beats assuming.
2. Panel thickness and the width of the lock stile. Under two inches is common, and it limits what can physically be bolted to it.
3. The face plate on the panel edge. Note its length, its width, the screw spacing on it, and how many hooks come out of it.
4. Keeper position. Slide the panel open and look at the fixed frame. Note whether the keeper is one plate or two, how it is fixed, and whether it has adjustment slots.
5. The outside face. A keyed cylinder, a fixed pull, or nothing at all. A keypad has to live somewhere, and many doors have no through-hole for one.
6. The maker. Look for a stamp or sticker on the top edge of the panel or in a corner of the glass. Patio hardware is far more brand-specific than deadbolt hardware, and the door manufacturer’s parts page is often the only place a matching body exists.

The discipline is the one the general smart lock installation guide describes for hinged doors, applied where tolerances are tighter and parts less interchangeable.

The lock is usually not the weak point

A sliding door is mostly glass. That is worth saying plainly before anyone spends three hundred dollars making the handle app-controlled. Tempered glass is difficult to break quietly, which matters more than people think, but it is not difficult to break.

Two mechanical things matter more than the lock on most patio doors. The first is lift. On older panels, missing or backed-off anti-lift screws in the head track leave enough vertical play to pop the panel out of the bottom track while the hook is still engaged. Check the head track for the small screws that close that gap, and adjust the roller screws at the bottom of the panel so it sits at the right height. The second is the keeper, which is often held by two short screws into a thin extrusion. Longer screws reaching something solid change how much force the hook can resist.

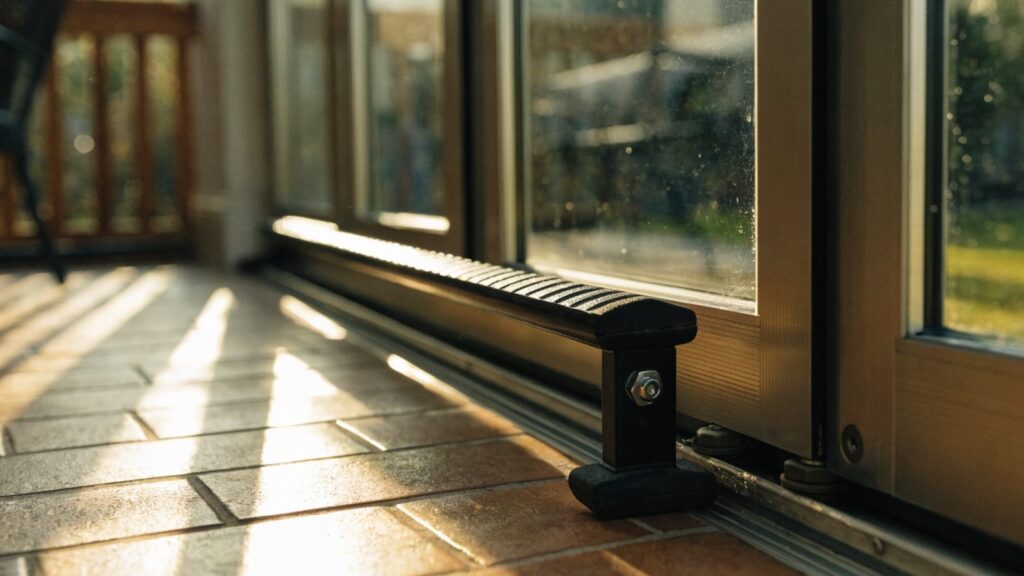

A bar in the lower track remains the cheapest useful thing you can add. It does nothing about the glass, and it is visible from outside, which is part of why it works. Security film, laminated glass and a glass-break sensor address the pane itself.

What it costs

Prices move with market and season, and patio hardware moves more than most because so much of it is brand-specific. Treat these as ranges for sanity-checking a quote rather than as a price list.

• Track bar, foot bolt or pin lock: roughly $15 to $40.
• Replacement mechanical handle set with hook bolt: roughly $40 to $120, higher when the part only comes from the door manufacturer.
• Keypad or Bluetooth handle set made for sliding doors: roughly $150 to $400.
• Motorized actuator plus whatever hub it needs to reach your phone: roughly $50 to $150.
• Locksmith visit to swap a mortise body: a call-out fee plus parts. Worth a phone quote first, since some shops decline patio doors.

There is a quieter option in that table. Many households leave the patio door mechanical, spend twenty dollars on a track bar and longer keeper screws, and put the smart hardware on the front door where deliveries actually arrive. If that door has a knob instead of a deadbolt, the constraints shift again, and the guide to fitting a smart lock to a door knob with no deadbolt is the one to read next.

Renting, and doors you do not own

Patio hardware changes are a harder sell to a landlord than a deadbolt rekey, because the handle set is part of the door assembly and a replacement rarely goes back cleanly. Surface-mounted bolts and track bars survive that conversation, since they come off without a trace.

A homeowners association may have rules about hardware visible on a patio facing common ground, and some buildings treat a sliding door onto a balcony or a fire escape as part of an egress route. Both are local questions, so ask your association or building manager rather than a forum thread.

Common questions

Can I put a Schlage or Yale smart deadbolt on a sliding glass door?

No, and no adapter changes that. Those locks need a bored hole through the door face and a solid edge for the bolt to cross into, and a sliding panel has neither. Where a listing seems to suggest otherwise, it is describing the hinged door beside the patio door.

Will a SwitchBot or August retrofit work on my patio door?

Not as designed. Both sit over the thumbturn of an existing deadbolt and rotate it, and a patio door offers a lever or thumb latch in a spot with no room for the mounting collar. People do improvise mounts for lever-pressing bots, with mixed reports on how long they hold.

What about the little foot bolt at the bottom of my door?

Keep it and use it. It is a separate mechanism from the handle, so it still works when the main hook is worn or the keeper has drifted out of line. It will stay manual, but it is the part of a patio door that owners most often forget they have.

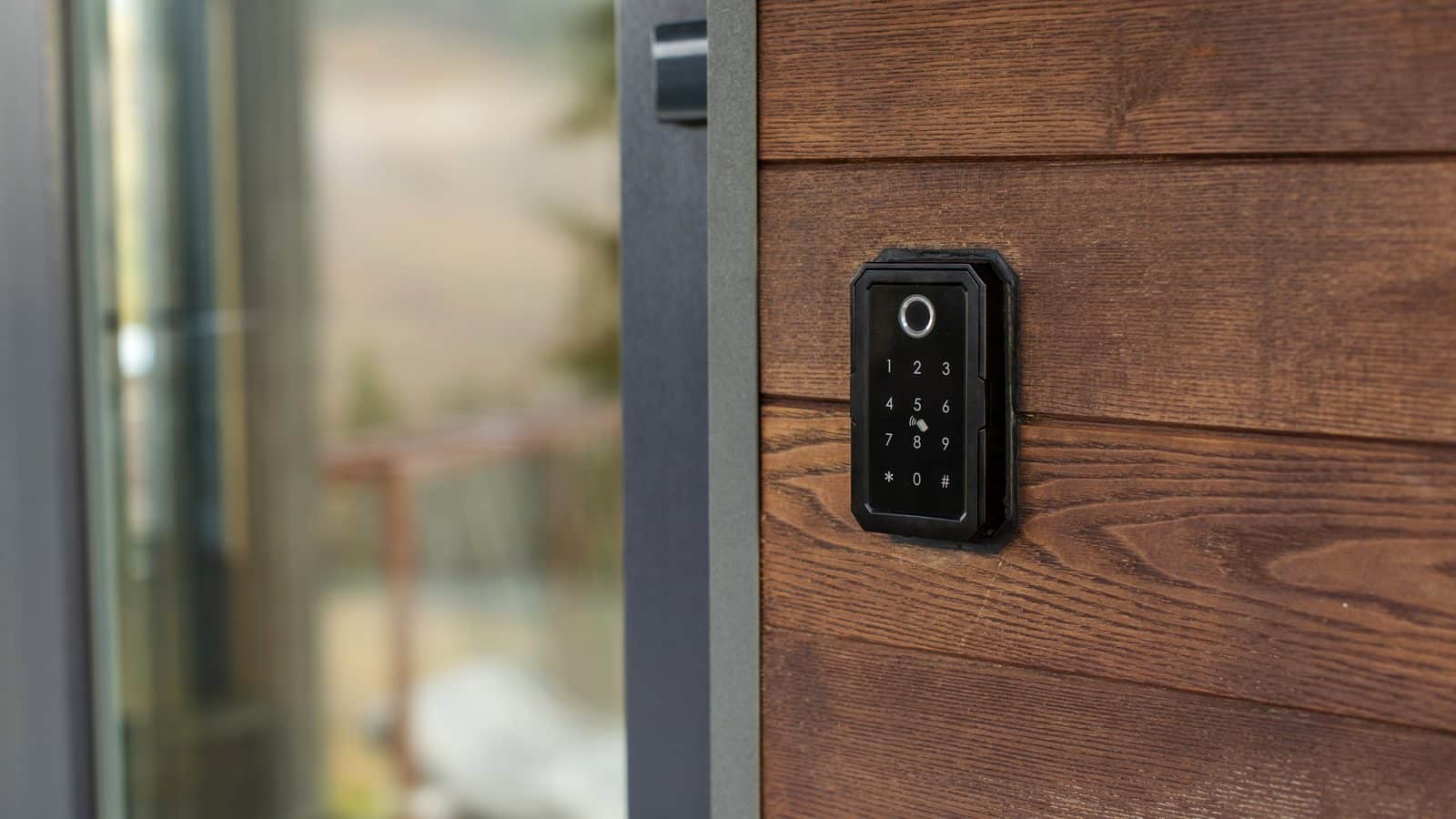

Can I add a keypad without replacing the handle?

Rarely, on this door type. A keypad has to move something mechanical, and on a slider the only things to move are the lever and the hook, both of which live inside the handle set. The realistic keypad routes are a full sliding-door handle set, or a keypad on another door with a mechanical lock left on the patio door.

The short version

A sliding glass door has no cross bore, no deadbolt and no thumbturn, so the ordinary smart lock catalog does not apply. What does apply is a handle set built for sliders, a mortise body swap, surface-mounted bolts and bars, or a motorized add-on pressing the existing lever. Measure the handle screw spacing, the stile width, the face plate and the keeper before you shop, because patio hardware is brand-specific in a way deadbolts are not. Money spent on anti-lift screws, longer keeper screws and a track bar buys more than money spent making the handle app-controlled. If you rent, stay with the reversible hardware and put the smart lock on a door that has a deadbolt.
